Sanpeo 10 Cargo & Inspection Drone
SANPEO x10
Technical Specifications
FC / MCU H743 / STM32H743
Companion Computer Raspberry Pi Zero 2W (Optional Raspberry Pi 5 / NVIDIA Jetson Orin Nano)
ESC 60A - 80A 4-in-1 ESC (Conformal Coated)
Propeller 1045 / 1050 High-Efficiency Carbon Composite
GNSS System GPS, Galileo, BeiDou, GLONASS (Anti-Jamming Enabled)
Connectivity 4G LTE / 5G Network Control Unit & Telemetry
Wheelbase 450 mm
Max Takeoff Weight 5.0 KG (Max Payload: 2.5 KG)
Max Speed 140 km/h
Wind Resistance Level 6 (12 m/s / ~27 mph)
IP Rating IP43 (Rain-Splash & Weather-Resistant Enclosure)
Flight Time 20 – 30 mins (Depending on Payload & Environment)

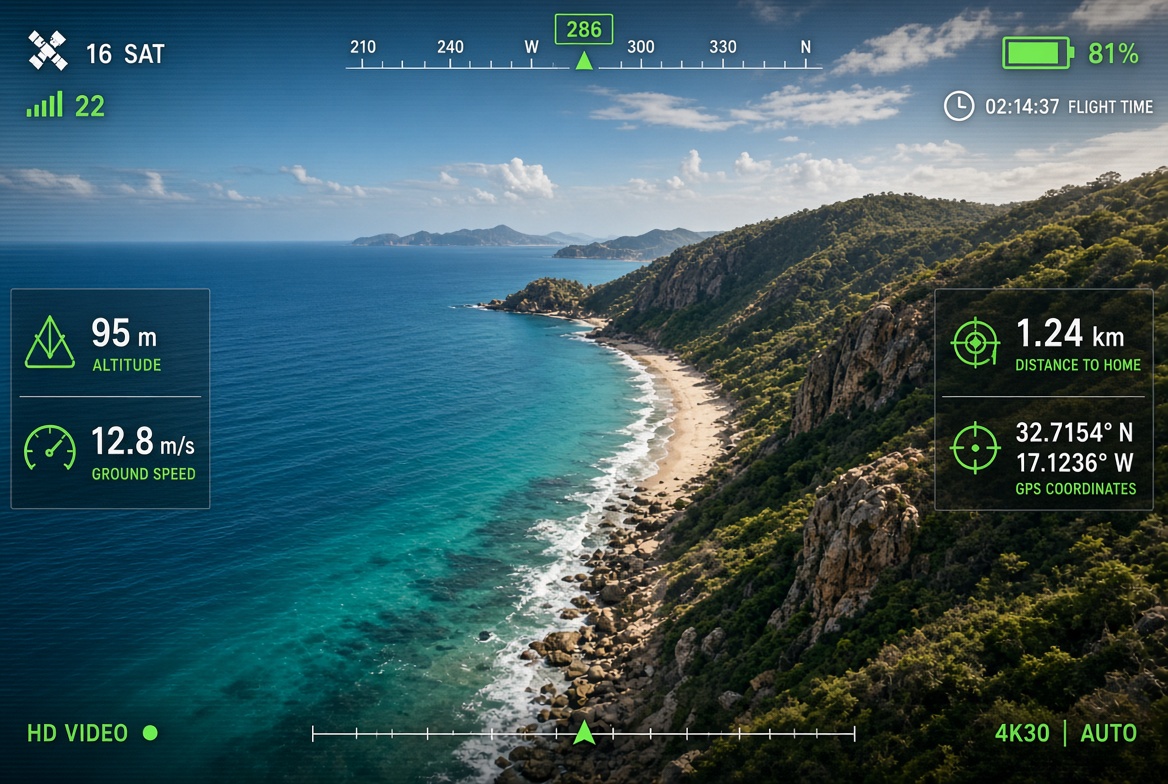

Camera Payload 4K UHD High-Resolution Optical Camera Options
Battery Options 6S Li-Po / Li-ion (10,000 mAh – 16,000 mAh)
Origin & Capability
Made in Taiwan
Accepting Small-Batch & Mass Production
Fully Customizable Enterprise Solutions Available
